Kernel Development

NPU HW Overview

Torq NPU consists of a number of processing units called Slice. The slices are independent but share a common local RAM (LRAM). Slices cannot access DRAM directly, all data, constants, programs and results must be located in LRAM.

Each slice contains an ALU, and an activation unit (Act): these are SIMD units capable of vector processing. In addition the slice contains a few internal memories that can be used as caches or transfer buffers. ALU, Act and the internal memories are connected by programmable transfer agents called NDL.

All these components operate in parallel to perfom a computation.

Programming a Slice

Performing a computation with a Slice requires configuring the ALU, the Act and all the NDLs. A configuration that performs a specific computation is called a kernel.

Developing a kernel that runs on a Torq Slice using low-level HW APIs to program each unit directly is a complicated activity. Complications are due to multiple reasons:

  1. Programming a vectorized architecture is intrinsically harder then normal SISD programming and requires correct data organization and processing to exploit parallelism

  2. Idiosyncrasies and peculiarities in the HW (HW is optimized for efficiency not for easiness of programming)

  3. Each NDL must be programmed with the counts, strides and offset of the data to be trasferred. Working with mutiple groups of counts and strides is unnatural and error-prone.

  4. Multiple parallel but interdependent data flows are difficult to grasp by SW people

How can we write efficient kernels without getting lost in this complexity?

  1. Carefully design the data organization (e.g.: put data that can be processed together close to each other, provide adequate alignement and padding if needed). Design the processing to reduce the number of times the same data is copied in/out from local memory.

  2. Encapsulate the specific HW behaviour inside higher-level operations This allows us to provide a logical “instruction set” for the NPW which abstract the HW details (eg. multiplyAccumulate instruction)

  3. Organize the data in multi-dimensional tensors with a shape and element type. Let the internal implementation take care of the corresponding sizes, strides and offset (same idea as numpy).

  4. In our Torq Slice the data flows (represented by the NDLs) are running in parallel but they are not completely independent, actually they must be exactly syncronized in order to get the correct results. Even if we have about 10 of these data flows, they represent one single computation. Let’s express the overall computation once and derive all the data flows from there.

EasyKernel is a library designed to help kernel writers with points 2. 3. and 4. It allows to generate the low-level settings and NDLs configuration from a more natural higher-level description.

Even with this support, kernel writing is definitely not easy: organizing data in a proper way and using the right instructions to parallelize processing as much as possible remains an important design challange.

EasyKernel

EasyKernel provides a C++ API that allows to express a kernel using high-level constructs. It provides a simplified logical view of a Torq Slice that abstracts many of the details and complexities of the underlying HW implementation.

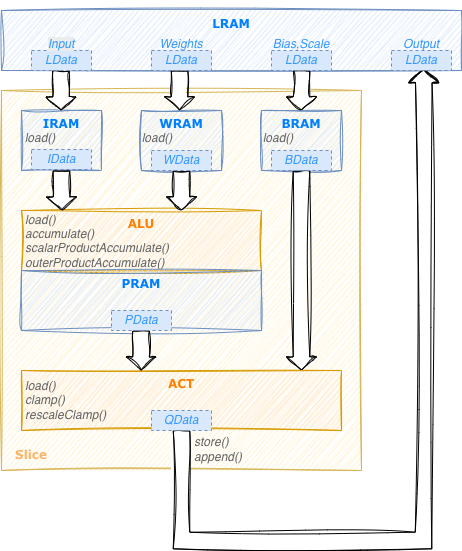

The picture here below shows a logical diagram of a Slice as presented by the EasyKernel library:

Slice Logical View

The slice contains:

  • 2 computational units (ALU and Act)

  • 4 internal memories: IRAM, WRAM, BRAM used as cache or temporary buffers to contain respectively input, weights and (bias,scale) values. PRAM is used by ALU as a working memory to contain partial results.

Each unit provides its own instruction set. PRAM has no instructions since it is controlled directly by the ALU. The NDL data-transfer engines are not represented in this view since their configuration is derived implictly from the instructions of the other components.

LData structures are used to repesent n-dimensional tensors in LRAM. Each tensor has a data type and n dimensions, each with its own element count and stride. Representing the strides explicitly provides a natural way to represent data which is not contiguous in memory. The concept is very similar to that of a MemRef in MLIR. In the same way we use IData, WData, BData, PData structures to represent tensors in IRAM, WRAM, BRAM and PRAM respectively. These data structures all work essentially the same, the main difference is the physical location of the data they represent.

EasyKernel allows to express a kernel as a sequential program using these instructions and data types. It’s important to keep in mind that despite this illusion of sequentiality, during execution all the unit in a Slice will actually operate in parallel.

The best way to explain how to write a kernel is probably with an example. In the following sections we will see how to write a simple kernel that performs elementwise multiplication of two input tensors. We will start with some strict assumptions on the format of the input data and then see how to extend the kernel to be completely generic while still being as efficient as possible.

Example: 1D tensor multiplication (vanilla)

The easiest way to start writing a kernel is to use the Slice as a scalar (SISD) processor on input tensors with a known shape.

Required kernel behaviour: receive in input two tensors of rank 1 and generate in output a tensor containing the rescaled elementwise products of the inputs, clamped to a specified min and max values. Each output value must be computed as:

out[i] = clamp((input1[i] * input2[i] + bias) * scale, min, max)

In this example the bias and scale values will be the same for all the elements.

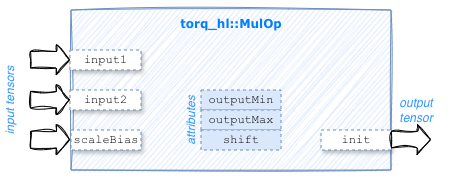

The first thing to do when developing a kernel is to define the data tensors in LRAM on which the kernel will operate. Normally the data shape, layout, and type of these tensors cannot be decided by the kernel but come from higher-level compiler passes via MemRef structures. Each MemRef is associated to an operand of an MLIR operation and can be accessed with the name of the operand. Conveniently LData objects can be created directly from MLIR operands:

Slice slice;
LData input1(op.getInput1());
LData input2(op.getInput2());
LData biasScale(op.getScaleBias());
LData output(op.getInit());

In addition to operands, MLIR operators also have attributes that can also be accessed by name, so we can get the min and max output values, and the shift needed for the rescale:

const int outMin = op.getOutputMin();
const int outMax = op.getOutputMax();
const int shift = op.getShift();

It’s also always a good idea to verify that the tensors are as expected:

// Verify inputs are 1D and same length
assert(input1.shape().size() == 1 && input2.shape().size() == 1);
assert(input1.dim(0) == input2.dim(0));

Now that the data definition is completed we can start to define the algorithm to perform the processing. This can be done with the help of a Slice object that will allow us to express the computation using high-level instruction and translate them to the corresponding HW and NDL configuration.

The Torq Slice is not able to use data from LRAM directly, we have first to bring them to one of the internal memories (IRAM, WRAM or BRAM). In our case the biasScale tensor is very small (it contains only one [bias, scale] pair) so we can simply bring it to internal memory once at the beginning and leave it there.

BData bdata = slice.bram.load(biasScale);

Now we can start specifying the processing. The idea is to perform the same computation for all the elements in the input tensors, one value at a time. We need a for loop:

For(auto i = slice.iterate(input1.dim(0))) {
    // Body of the processing to be added here
}

Important

The uppercase F in the above code is not a typo. And this is not a real C++ loop. This is just a syntactic representation of a loop that will be executed by the Slice.

We can see iterate(N) as a method that creates an iterator representing a loop that will be repeated N times. Here N is input1.dim(0) that is the number of elements in the first (and only) dimension in input1. Each iterator internally contains an iteration variable that represents a runtime index incrementing from 0 to N-1. We can use these iteration variables as indexes to extract parts of the data tensors.

Now let’s fill the body of our loop. We can access values in the LData tensors by indexing them as we would do with standard arrays and multiply each element of the first input by the corresponding element of the second input. This will be done with the ALU using the scalarProductAccumulate instruction (the full list of supported operations is in the Alu class). Since both arguments contains one single value, the resulting pdata will also contain one single partial. We can rescale and clamp this value using the activation unit (rescaleClamp instruction in the Act class) and store the result in the output tensor.

This completes the definition of the kernel, here the complete code:

// Verify inputs are 1D and same length
assert(input1.shape().size() == 1 && input2.shape().size() == 1);
assert(input1.dim(0) == input2.dim(0));

BData bdata = slice.bram.load(biasScale);
For(auto i = slice.iterate(input1.dim(0))) {
    IData data1 = slice.iram.load(input1[i]);
    WData data2 = slice.wram.load(input2[i]);
    PData pdata = slice.alu.elementwiseProductAccumulate(data1, data2);
    QData res = slice.act.rescaleClamp(pdata, bdata, shift, 0, outMin, outMax);
    slice.store(output[i], res);
}

We can now ask the Slice object to provide the corresponding HW settings and NDLs configuration using the getCfgAttr() and getNdls() methods.

Using the Slice as a scalar processor is not very different from writing the same operation in C for a standard CPU. Of course this is not using the full computational power of the Slice, we will see how to improve this in the next version of this kernel.

Note

Writing a “vanilla” version of a kernel operating one element at a time can often be a good way to start designing a kernel, since this doesn’t require any specific data organization and can provide a reference against which to benchmark more optimized implementations.

Kernel Structure

The structure of the kernel in the example above, even if very simple, is quite typical. Each kernel must contain the following mandatory instructions:

  • One single alu instruction (specifies the behaviour of the ALU unit)

  • One single act instruction (specifies the behaviour of the activation unit)

  • One single store or append instruction (to store the result of the computation to LRAM)

In addition a kernel normally contains a combination of the following instructions:

  • load instructions to bring data from LRAM to the internal memories (up to one load instruction for each of IRAM, WRAM, BRAM)

  • For loops to repeat the computation over all the data to be processed (a loop can contain both the alu and act instructions, or only one of them)

  • additional configuration instructions as needed

It’s important to point out the role of the load instructions, even if they are conceptually very simple they are critical in the design of a kernel since they give the kernel writer full control on which data to bring to an internal memory and when. Ideally load instructions should be put in the most outer loop possible to avoid loading the same data multiple times from LRAM.

Example: 1D tensor multiplication (vectorized)

In this example we examine how to improve the previous version of the kernel to take advantage of the vector processing features of the ALU and Act units.

The idea is similar to what we have seen before, but instead if operating on one value at a time we operate on vector of values at a time. Of course this is only possible if the data in the input and output vectors are contiguous, that is if they are dense tensors, so we have to check that this is indeed the case:

// Verify inputs and output and dense
assert(input1.denseDims() > 0 && input2.denseDims() > 0 && output.denseDims() > 0);

In order to be able to process multiple input values at a time we need two things:

  1. determine how many values can be processed in parallel, that it the size of the input vectors

  2. split the input tensors in vectors of the given size

The vector size depends on the data type and the HW unit that we want to use. Since the ALU can support bigger vector sizes than the Act, but we want to use the same vecors for both, we ask Act to provide its maximum vector width for the input and weight types we want to use:

int vectorSize = slice.act.width(input1.elementType(), input2.elementType());

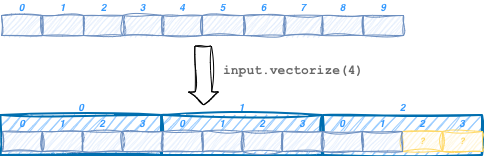

Now we can partition each input vector in chunks (vectors) each containing vectorSize elements. For the moment let’s also vectorize the output tensor, we will see soon why this is not a good idea.

input1.vectorize(vectorSize);
input2.vectorize(vectorSize);
output.vectorize(vectorSize);  // /!\ Vectorizing output is deprecated

What happens here is that the input and output tensors are reshaped from a vector of shape [N] to a 2D tensor of shape [N / vectorSize, vectorSize]. So while in the previous example input1[i] was referring to a single element, the same syntax applied to the 2D tensor above will actually refer to a vector of vectorSize elements. The intersting thing is that since the instructions we used inside the For loop in the previous example (load, store, elementwiseProductAccumulate, rescaleClamp) are all able to work on vectors of data, there is no need to apply any change to the loop itself, instead of iterating on all the data elements it will now iterate on all the data vectors. By adding the few lines above we have transformed the tensor multiplication kernel into one using vector operations. This new kernel is typically about 10 times faster than the original one (the exact number depending on the data types).

We still have an important point to address: what happens if the vector size N is not a multiple of vectorSize?

When we vectorize() a tensor, its size will become a multiple of the specified vectorSize. For the input tensors this is not a real issue, the last vector will go beyond the end of the data, so the final elements will contain junk data. Processing junk data is completely legal as long as they are not used as to compute the valid part of the result.

For the output tensor the situation is different: it is not allowed to write beyond the end of the tensor, since this will corrupt whatever information is there. This is checked by the compiler so if we try to use our vecotorized kernel on an data vector that is not multiple of vectorSize we will get a compile-time error.

One possible solution is for the kernel to explicitly request its output to be padded. In this way the junk result values from the last vector will safely end up in a padding area that is not used for anything else. While this approach works, the addition of this additional padding area to the output tensor can in some cases bbecome quite annoying, for example when working on subviews of existing tensors.

A better solution is to avoid going beyond the end of the output tensor in the first place. Luckily this can be achieved with a simple change to our kernel.

Instead of writing the result to the output tensor using the store() instruction, we can use the append() instruction. Append will append the given result to what has already be written in the indicated output (sub)tensor. So slice.store(output, res) will append res' to the results already written in the output tensor in previous iterations. In the same way ``slice.store(output[i], res)`` will append resto the results already written in theoutput[i]` subtensor in previous iterations. What makes append() so useful is that it never overflows the size of the output (sub)tensor it is writing. For example if we try to append two 16-bytes results to a tensor of size 20, the first append will write the entire 16 bytes, while the second append will just write the initial 4 bytes and discard the remaining 12.

In order for this to work we just have to make sure not to modify the size of the output tensor, this is why we shall never apply vectorize() to an output tensor.

Here is the final code of our vectorized kernel working on any dense 1D input of any size without any padding:

// Verify inputs are 1D and same length
assert(input1.shape().size() == 1 && input2.shape().size() == 1);
assert(input1.dim(0) == input2.dim(0));

// Verify inputs and output are dense
assert(input1.denseDims() > 0 && input2.denseDims() > 0 && output.denseDims() > 0);

// Vectorize inputs
int vectorSize = slice.act.width(input1.elementType(), input2.elementType());
input1.vectorize(vectorSize);
input2.vectorize(vectorSize);

BData bdata = slice.bram.load(biasScale);
For(auto i = slice.iterate(input1.dim(0))) {
    IData data1 = slice.iram.load(input1[i]);
    WData data2 = slice.wram.load(input2[i]);
    PData pdata = slice.alu.elementwiseProductAccumulate(data1, data2);
    QData res = slice.act.rescaleClamp(pdata, bdata, shift, 0, outMin, outMax);
    slice.append(output, res);
}

Important

Use vectorize() to reorganize the innermost dimension of input tensors for vector processing. Never vectorize output tensors. Use the append() instruction to write vector results to output without overflow.

Example: n-dimensional tensor multiplication (vectorized)

In practice the input and output tensors of an elementwise mul operation are not required to be 1D, they can have any number of dimensions as long as the tensors have the same shape. Let’s see how to extend our kernel to handle this. For the case of rank-2 tensors, the change would be trivial, instead of one For loop, we would now need two nested loops:

For(auto i = slice.iterate(input1.dim(0))) {
    For(auto j = slice.iterate(input1.dim(1))) {
        IData data1 = slice.iram.load(input1[i][j]);
        WData data2 = slice.wram.load(input2[i][j]);
        PData pdata = slice.alu.elementwiseProductAccumulate(data1, data2);
        QData res = slice.act.rescaleClamp(pdata, bdata, shift, 0, outMin, outMax);
        slice.append(output, res);
    }
}

For the case of rank-3 tensors, the change would be trivial as well, we simply need 3 loops. The problem is that we don’t know a priori how many dimensions the tensors can have, and writing an explicit implementaton for each possible rank is tedious end error prone.

For these situations it is very convenient to use an extension provided by the iterate() method. Instead of passing a single iteration couter, it’s also possible to pass a vector of counters. In this case we will get as return value not a single iterator but a vector of iterators, for simplicity we call this a multi-iterator. A single For loop on a multi-iterator with M elements will be expanded to M loops, each with its own counter. A multi-iterator will contain a multi-iteration-variable that can be used to index multiple dimension of a tensor at once.

As concrete example consider the following code:

For(auto m = slice.iterate({4, 7})) {
    IData data = slice.iram.load(input[m]);
    // ...
}

It is equivalent to the code here below:

For(auto i = slice.iterate(4)) {
    For(auto j = slice.iterate(7)) {
        IData data = slice.iram.load(input[i][j]);
        // ...
    }
}

The number of elements in the vector of counters passed to iterate() can be arbitary, including 0 elements. In this case the multi-iterator will be equivalent to no loops at all:

For(auto m = slice.iterate({})) {
    IData data = slice.iram.load(input[m]);
    // ...
}

is equivalent to:

IData data = slice.iram.load(input);
// ...

With this functionality it’s trivial to write a version of the mul kernel that works with any input rank, all we have to do is to replace the single iterator with a multi-iterator iterating on all the tensor dimensions except the last one. Remember that the last dimension is the one representing the elements of data vectors that we wqnt to process. If we iterated also on this dimension we would be back processing one element at a time. We can express “all the input dimensions except the last one” as input1.dim(0, input1.shape().size() - 1) or equivalently as input1.dim(0, -1) (negative indexes count from the end as in numpy).

To resume, the change to support tensors of arbitrary rank consist of replacing the line:

For(auto i = slice.iterate(input1.dim(0))) {

with:

For(auto i = slice.iterate(input1.dims(0, -1))) {

Here the full code:

// Verify that inputs have the same rank and the same count in each dimension
assert(input1.dims() == input2.dims());

// Verify inputs and output inner dimensions are dense
assert(input1.denseDims() > 0 && input2.denseDims() > 0 && output.denseDims() > 0);

// Vectorize inputs
int vectorSize = slice.act.width(input1.elementType(), input2.elementType());
input1.vectorize(vectorSize);
input2.vectorize(vectorSize);

BData bdata = slice.bram.load(biasScale);
For(auto i = slice.iterate(input1.dims(0, -1))) {
    IData data1 = slice.iram.load(input1[i]);
    WData data2 = slice.wram.load(input2[i]);
    PData pdata = slice.alu.elementwiseProductAccumulate(data1, data2);
    QData res = slice.act.rescaleClamp(pdata, bdata, shift, 0, outMin, outMax);
    slice.append(output, res);
}

Note that we didn’t change the assert on the dimensions being dense. This is because we actually need only the innermost dimension to be dense, so that we can vectorize it. We don’t care about upper dimensions being dense or not since the multi-iterator will automatically get the correct count and stride for each dimension from the LData structure.

Important

multi-iterators and the corresponding multi-indexes allow to handle in a generic way computations involving a variable number of dimensions. A multi-iterator can be created by calling the Slice iterate() method with a vector of counters.

Important

LData::dim(int index) returns the number of elements in the specified dimension. LData::dims(int begin, int end) returns a vector with the number of elements in the dimensions from begin (included) to end (excluded). Negative indexes are interpreted from the end as in numpy.

Example: n-dimensional tensor multiplication (optimized)

There is still a case where the n-dimensional mul kernel we’ve seen in the previous section is sub-optimal. Imagine that both inputs and output are dense tensors with many small dimensions, for example [5, 3, 3, 2]. Our kernel will vectorize the innermost dimension, giving 1 single vector of 2 elements. Then it will iterate 5 * 3 * 3 times to process all the elements. But since the tensors are dense we could have used bigger vectors than with just 2 elements, this would have required much less iterations.

The idea to improve performnce in these cases is to fuse together as many inner dimensions as possible. Of course we can only fuse dimensions that are dense. Dimensions that have “holes” in the data, that is that use non-natural stride cannot be fused. Furthermore since an elementwise kernel requires the input and output tensors to have the same rank, we can only fuse two nearby inner dimensions if they are dense in both inputs and ouput tensors. Note again that we are only talking about inner dimensions. After we find a non-dense dim we don’t care if outer dimensions are dense or not, we will not be able to fuse them anyway. The LData class provides several tensor-editing method, we have already used vectorize() we will now use fuse():

// Count how many dense inner dimensions we have in input and output
int inDenseDims = std::min(input1.denseDims(), input1.denseDims());
int outDenseDims = output.denseDims();

// Fuse dense dimensions in all the tensors
int denseDims = std::min(inDenseDims, outDenseDims);
input1.fuse(denseDims);
input2.fuse(denseDims);
output.fuse(denseDims);

After this fusion, all tensors will have one inner dense dimension (as big as possible) and possibly additional outer dimensions as needed. The rest of the code will remain unchanged. Vectorization will now operate on a larger inner dimension, and so will be able to make full use of the max vector size supported by the Slice. The above code is completely generic and will work also in the case where there is no dense dimension at all.

Another feature that is quite useful in elementwise operations like mul is broadcasting. Broadcasting is a mechanism that allows to perform elementwise operations on arrays of different shapes and sizes without making unnecessary copies of data. For example if this operator receives input1 having shape [2, 5, 7] and input2 having shape [1, 1, 1] to generate an output of shape [2, 5, 7], we would like all elements in tensor1 to be multiplied by the single element in input2. This can be implemented using tensor editing, using the broadcastAs() method. It will adapt the number of elements in an input tensor to make it equal to the number of elements in a given output tensor, while at the same time setting the strides correctly so that the elements in the broadcasted dimensions will be repeated as many times as needed without being physically duplicated. This is normally done right at the beginning of the kernel before vectorization is applied:

// Apply implicit broadcasting
input1.broadcastAs(output);
input2.broadcastAs(output);

With the above code we can remove the requirement that the two inputs must have the same rank. Of course the input and output tensors must be compatible for broadcast, otherwise we will get a compile error.

Here is the final version of our mul kernel (we have combined fusion and vectorization):

// Apply implicit broadcasting
input1.broadcastAs(output);
input2.broadcastAs(output);

// Count how many dense inner dimensions we have in input and output
int inDenseDims = std::min(input1.denseDims(), input1.denseDims());
int outDenseDims = output.denseDims();
int denseDims = std::min(inDenseDims, outDenseDims);

// Fuse and vectorize inputs
int vectorSize = slice.act.width(input1.elementType(), input2.elementType());
input1.fuse(denseDims).vectorize(vectorSize);
input2.fuse(denseDims).vectorize(vectorSize);
output.fuse(denseDims);

BData bdata = slice.bram.load(biasScale);
For(auto i = slice.iterate(input1.dims(0, In::Elements))) {
    IData data1 = slice.iram.load(input1[i]);
    WData data2 = slice.wram.load(input2[i]);
    PData pdata = slice.alu.elementwiseProductAccumulate(data1, data2);
    QData res = slice.act.rescaleClamp(pdata, bdata, shift, 0, outMin, outMax);
    slice.append(output, res);
}

Important

fuse() allows to fuse multiple dense dimensions into a single dimension. This can provide a performance improvement, in particular on tensors with small inner dimensions. For consistency always fuse the same number of dimensions in input and output.

Example: 2-dimensional reduce

In the mul examples above we used the elementwiseProductAccumulate instruction, but we didn’t really accumulate anything, we just multiplied two different vectors at each iteration. To see how accumulation works we show in this example a simple reduce kernel.

Required kernel behaviour: Reduce a 2D matrix along the first axis, that is given a [N, M] matrix, all the rows have to be added together to produce a single vector with [M] elements. Each element must saturate to the min and max values of the output data type. For simplicity we assume the inner dimension is dense, that is the elements of each row are contiguous.

The kernel structure will be similar to what we’ve already seen:

  1. create LData objects from the operands of the MLIR operation

  2. check they look as expected

  3. vectorize the input

  4. loop over the input data to compute the result

For kernels working on tensors with a fixed shape as this one, it’s always suggested to use named constants to refer to the tensor axis instead of hardcoded tensor indexes; this makes the code more readable and makes explicit the expected structure of the tensors. The easykernel library contains a few predefined enums for this, each kernel can define its own locally. In this case our input will have two dimensions, and will be vectorized so we can represent it as:

struct In : Vectorized {
    enum { Rows, Cols };  // Input is a 2D array that we vectorize
};

Defining the enum inside a struct provides a scope for the names and makes it easy to inherit predefined enum values as needed (here we inherit the ones from the Vectorized structure).

We define the LData tensors from the MLIR operands as usual, we only have one input and one output in this kernel, no bias tensor:

// Setup input and output tensors
Slice slice;
LData input(op.getInput());
LData output(op.getInit());
DType outType = output.elementType();

// Input must be 2D with dense rows, output must be 1D dense
assert(input.shape().size() == 2 && output.shape().size() == 1);
assert(input.dim(1) == output.dim(0));
assert(input.denseDims() > 0 && output.denseDims() > 0);

Since the rows are dense we can vectorize them to improve performace. Which vector size should we use? In the previos mul examples we used the Act width because this vector size is guaranteed to also work with the ALU. We could do the same here, but when we are accumulating over multiple input values to generate an output, using the same vector size for the ALU and the Act would be inefficient. ALU supports a larger vector size than the Act so it is convenient to accumulate with the ALU using this bigger vectors. Once we have completed the accumulation we can split the partial result in smaller sub-vectors and process them with the Act. Since ALU and Act are operating in parallel, this allows to everlap the accumulation loop in the ALU with the sub-vector processing loop in the Act.

The Alu::iWidth() method returns the max input vector size for the given input and weight type. We don’t have weights here, so we pass None as the second parameter.

int vectorSize = slice.alu.iWidth(input.elementType(), DType::none);
input.vectorize(vectorSize);

At this point the vectorized input is a 3D tensor of shape [N, M / vectorSize, vectorSize], enabling us to operate on vectorSize elements at a time. Since in this kernel we just want to accumulate over the input rows we can use the simpler accumulate() instruction instead of elementwiseProductAccumulate().

The main processing will consist of two nested loops, the outer one iterating over all the column vectors, the inner one accumulating this column vector across all the input rows.

// For all the columns (column vectors actually)
For(auto c = slice.iterate(input.dim(In::Cols))) {
    PData pdata;
    // Accumulate across the reduce dimension
    For(auto r = slice.iterate(input.dim(In::Rows))) {
        IData idata = slice.iram.load(input[r][c]);
        pdata = slice.alu.accumulate(idata);
    }

The pdata contains the accumulated partials that we have to process with the Act. As we explained, the Act is not able to process all these values at once, we need an additional loop to process them one chunk (sub-vector) at a time. This is quite easy to do as pdata is a 2D tensor, basically the inner dimension consist of vectors of the right size to be processed by the Act in one go. We can use the predefined PData::Vectors enum index to iterate over them. Since we don’t need to rescale we can use the clamp() instruction instead of rescaleClamp():

    // Clamp the accumulated result
    For(auto av = slice.iterate(pdata.dim(PData::Vectors))) {
        QData res = slice.act.clamp(pdata[av], minVal(outType), maxVal(outType));
        slice.append(output, res);
    }
}

Note

Using the techiques we’ve seen up to here it is straightforward to adapt this example to work for an input tensor of any rank (dense or not) and any reduce axis

Important

For accumulating kernels always use the largest vector size supported by the ALU. The generated partial result will be vectorized correctly for processing by Act
